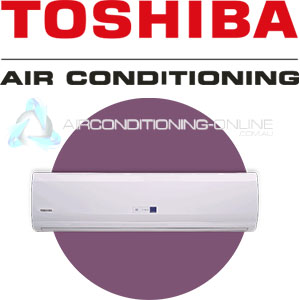

| INDOOR |
|
|
RAS-34BKVS-A |
| OUTDOOR |
|
|
RAS-34BAVS-A |
| Refrigerant Type |
|
|
R410A |
| Power Supply |
|
|
220-240V ,1Ph,50Hz |
| COOLING |
Cooling capacity - rated |
kW |
9.2 |
| |
Cooling capacity - maximum - minimum |
kW |
*9.60~3.60 |
| Power input - rated |
kW |
2.88 |
| Power input (min ~ max) |
kW |
0.95~3.60 |
| Operating current - cooling (rated) |
A |
12.75 |
| EER (rated) |
- |
3.19 |
| HEATING |
Heating capacity - rated |
kW |
9.8 |
| Heating capacity - maximum - minimum |
kW |
*9.80~3.80 |
| Powr input - rated |
kW |
2.75 |
| Power input (min ~ max) |
kW |
0.95~3.50 |
| Operating current - heating (rated) |
A |
11.82 |
| COP (rated) |
- |
3.56 |
| INDOOR UNIT |
Airflow volume (H-L) |
l/s |
327.77/222.22 |
| Moisture removal |
l/hr |
3.58 |
| Sound pressure - cooling (H-L) |
dB(A) |
51-39 |
| Dimension (HxWxD) |
mm |
362 x 1259 x 283 |
| Net weight |
kg |
19 |
| Sound power (H) Dimension (HxWxD) |
dB(A) |
63 |
| OUTDOOR UNIT |
mm |
810 x 946 x 420 |
| Net weight |
kg |
63 |
| Sound pressure (H) |
dB(A) |
61 |
| Sound power (H) |
dB(A) |
69 |
| Operating range - cooling |
◦C |
-10~46 |
| Operating range - heating Liquid line Φ /gas line Φ |
◦C |
-15~24 |
| PIPE SIZE |
mm/inch |
9.52/15.9 (3/8"/5/8") |
| Maximum piping length |
m |
40 |
| Maximum piping height difference |
m |
20 |
| Chargeless length |
m |
5 |
| Compressor type |
- |
rotary |
