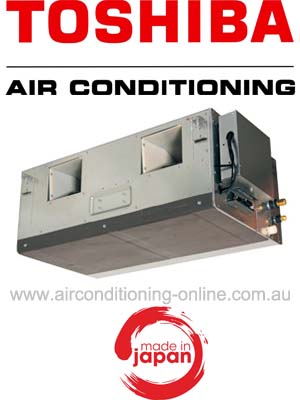

TOSHIBA Inverter - Three Phase Ducted System RAV-SM1603DT-A / RAV-SP1604AT8-A1 / RBC-AMS54E-ES Backlit Wired Control with Timer
| Indoor | RAV-SM1603DT-A | ||
| Outdoor | RAV-SP1604AT8-A | ||
| Refrigerant Type | R410A | ||
| Power Supply | Volts-Phase-Hz | 380-415V /3/50Hz | |
| Cooling | Capacity - Rated | kW | 13.6 |
| Capacity - Range (min~max) | kW | 3.3-16.0 | |
| Efficiency (rated) | EER | 3.30 | |
| Power Input (min~rated~max) | kW | 0.90-4.12-6.23 | |
| Operating Current (rated) | A | 7.03 | |
| Heating | Capacity - Rated | kW | 16.0 |
| Capacity - Range (min~max) | kW | 4.2-19.0 | |
| Efficiency (rated) | COP | 3.61 | |
| Power Input (min~rated~max) | kW | 0.80-4.43-9.71 | |
| Operating Current (rated) | A | 7.71 | |
| Indoor Unit | Dimension (HxWxD) | mm | 380x1050x600 |
| Net Weight | kg | 57 | |
| Airflow Volume | L/s | 967 | |
| Heating Airflow Volume | L/s | 967 | |
| Fan Motor Output | W | 600 | |
| Sound Pressure (H) at 1m distance | dBA | 50 | |
| Sound Power (H) | dBA | 65 | |
| Cooling Usable Temperature Range | ˚C | (-15)~46 | |
| Heating Usable Temperature Range | ˚C | (-20)~15 | |
| Outdoor Unit | Dimension (HxWxD) | mm | 1340x900x320 |
| Net Weight | kg | 95 | |
| Compressor Type | - | DC Twin Rotary | |
| Fan Motor Output | W | 100+100 | |
| Cooling Operating Noise (Sound Pressure) (H) at 1m | dBA(@spl) | 51 | |
| Cooling Operating Noise (Sound Power) (H) | dBA(@swl) | 68 | |
| Heating Operating Noise (Sound Pressure) (H) at 1m | dBA(@spl) | 53 | |
| Heating Operating Noise (Sound Power) (H) | dBA(@swl) | 70 | |
| Cooling Usable Temperature Range | DB˚C | (-15)/+46 | |
| Heating Usable Temperature Range | DB˚C | (-20)/+15 | |
| Pipe Size | Liquid Line ∅ | mm | 9.5 |
| Gas Line ∅ | mm | 15.9 | |
| Coupler Style | mm | Flaring | |
| Drain (Inside Diameter) ∅ | mm | VP25 | |
| Maximum Length | m | 75 | |
| Chargeless Length | m | 30 | |
| Maximum Height Difference | m | 30 | |
You may also like:
INSULATED PAIRED COPPER PIPE 9.5 x 15.88mm (3/8 x 5/8") - 20 metre lengths
$245.00
TOSHIBA RBC-AMT32E / WIRED CONTROL
$182.00
TOSHIBA RBC-AMS41E / WIRED CONTROL WITH WEEKLY TIMER
$191.00

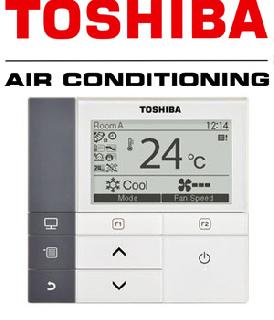

TOSHIBA RBC-AMS51E-EN / BACKLIT WIRED CONTROL WITH TIMER
