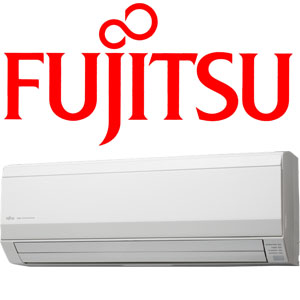

| Model No. - Indoor |
ASTG12LVCC |
| Model No. - Outdoor |
AOTG24LAT3 |
| Reverse Cycle System |
Yes |
| Capacity Class |
3.5 |
| Cooling Capacity (Watts) |
3,500 |
| Cooling Capacity (BTU/h) |
11,954 |
| Range (Watts) |
3,700 |
| Range (BTU/h) |
12,977 |
| Heating Capacity (Watts) |
3,800 |
| Heating Capacity (BTU/h) |
12,977 |
| Range (Watts) |
4,800 |
| Range (BTU/h) |
16,392 |
| Power Supply (Volts) |
240 |
| Phase-Frequency (Ph - Hz) |
1-50 |
| Power Supply Attachment |
Outdoor Unit |
| Plug Size (If Applicable) |
Not Applicable |
| Running Current, Cooling (Amps) |
0.14 |
| Running Current, Range (Amps) |
- |
| Input, Cooling (Watts) |
- |
| Input, Range (Watts) |
- |
| Running Current, Heating (Amps) |
- |
| Running Current, Range (Amps) |
- |
| Input, Heating (Watts) |
- |
| Input, Range (Watts) |
- |
| Input (Watts) |
19 |
| Moisture Removal (l/hr) |
- |
| E.E.R. - Cooling |
- |
| C.O.P. - Heating |
- |
| Star Rating - Cooling |
- |
| Star Rating - Heating |
- |
| Fan Speed |
4 |
| Air Circulation, High (l/s) |
194 |
| Compressor Type |
DC twin Rotary |
| Dimensions - Inside Unit (HxWxD mm) |
293 x 790 x 225 |
| Weight - Inside Unit (kg) |
9.5 |
| Dimensions - Outside Unit (HxWxD mm) |
700 x 900 x 330 |
| Weight - Outside Unit (kg) |
55 |
| I.U. Sound Pressure Level (dBA@1mtr) |
38 |
| O.U. Sound Pressure Level (dBA@1mtr) |
48 |
| O.U. Sound Power Level (dBA) |
64 |
| Refrigerant Type |
R410A |
| Connection Pipe Sizes, Gas (mm) |
9.52 |
| Connection Pipe Sizes, Liquid (mm) |
6.35 |
| Pre Charged Length (Metre) |
- |
| Minimum Pipe Length (Metre) |
5 |
| Maximum Pipe Length (Metre) |
25 |
| Maximum Pipe Height (Metre) |
10 |
| Pipe Connection Methods |
Flare |
| Outdoor operating Temp, Cooling ℃ |
-10 to 46 |
| Outdoor operating Temp, Heating ℃ |
-15 to 24 |
