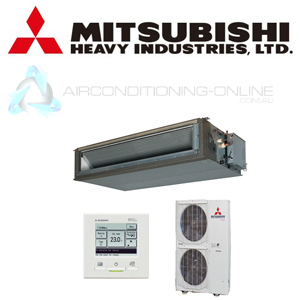

MITSUBISHI HEAVY INDUSTRIES FDUA200AVSAVG Ducted Air Conditioner 3 Phase Incl RC-EX3 Back Lit Controller
|
SET |
FDUA200AVSAVG |
|
|
Indoor |
FDUA200VG |
|
|
Outdoor |
FDCA200VSA |
|
|
Power Supply |
3 Phase 415V 50Hz |
|
|
Capacity |
||
|
Cooling T1 |
kW |
20.0 (6.9-28.0) |
|
Heating H1 |
22.4 (5.5-31.5) |
|
|
Input |
||
|
Cooling T1 |
kW |
6.83 |
|
Heating H1 |
5.5 |
|
|
EER |
||
|
Cooling T1 |
|
3.32 |
|
COP |
||
|
Heating H1 |
|
4.07 |
|
Sound pressure level (JIS C9612) |
|
|
|
Indoor |
dB(A) |
P-Hi:52 Hi:50 Me:47 Lo:45 |
|
Outdoor |
59 |
|
|
Sound power level (JIS C9612) |
|
|
|
Outdoor |
dB(A) |
73 |
|
Airflow |
||
|
Indoor |
I/s |
P-Hi:1333 Hi:1200 Me:1067 Lo:933 |
|
External static pressure |
Pa |
200 |
|
External dimensions (HxWxD) |
|
|
|
Indoor |
mm |
379 x 1600 x 893 |
|
Outdoor |
1505 x 970 x 370 |
|
|
Net weight |
||
|
Indoor |
Kg |
89 |
|
Outdoor |
143 |
|
|
Refrigerant piping |
||
|
Liquid line |
mm |
ᵩ12.7 |
|
Gas line |
Refer to technical manual |
|
|
Connection method |
|
Refer to technical manual |
|
Refrigerant R410A |
||
|
Quantity |
Kg |
7.2 |
|
Pre charged to pipe length |
m |
30 |
|
Maximum Pipe Length |
m |
70 |
|
Supply air connection |
mm |
250 x 1450 |
|
Return air connection |
mm |
|
|
Controller |
RC-E5; RC-EX1A or RCN-KIT3-E |
|
