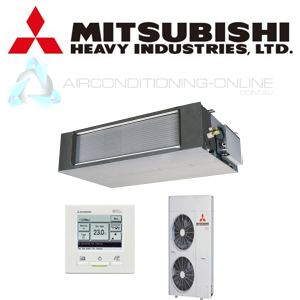

MITSUBISHI HEAVY INDUSTRIES FDUA160AVASVF Ducted Air Conditioner Three Phase / Inc RC-EX3 Back Lit Controller
|
SET |
FDUA160AVSAVF |
|
|
Indoor |
FDUA160VF |
|
|
Outdoor |
FDCA160VSA |
|
|
Power Supply |
3 Phase 415V 50Hz |
|
|
Capacity |
||
|
Cooling T1 |
kW |
16.0 (6.9-20.0) |
|
Heating H1 |
18.0 (5.5-22.4) |
|
|
Input |
||
|
Cooling T1 |
kW |
4.83 |
|
Heating H1 |
4.66 |
|
|
EER |
||
|
Cooling T1 |
|
3.31 |
|
COP |
||
|
Heating H1 |
|
3.86 |
|
Sound pressure level (JIS C9612) |
|
|
|
Indoor |
dB(A) |
P-Hi:49 Hi:48 Me:45 Lo:42 |
|
Outdoor |
59 |
|
|
Sound power level (JIS C9612) |
|
|
|
Outdoor |
dB(A) |
73 |
|
Airflow |
||
|
Indoor |
I/s |
P-Hi:850 Hi:800 Me:700 Lo:600 |
|
External static pressure |
Pa |
200 |
|
External dimensions (HxWxD) |
|
|
|
Indoor |
mm |
398 x 1150 x 650 |
|
Outdoor |
1505 x 970 x 370 |
|
|
Net weight |
||
|
Indoor |
Kg |
52 |
|
Outdoor |
143 |
|
|
Refrigerant piping |
||
|
Liquid line |
mm |
ᵩ12.7 |
|
Gas line |
Refer to technical manual |
|
|
Connection method |
|
Refer to technical manual |
|
Refrigerant R410A |
||
|
Quantity |
Kg |
7.2 |
|
Pre charged to pipe length |
m |
30 |
|
Maximum Pipe Length |
m |
70 |
|
Supply air connection |
mm |
348 x 898 |
|
Return air connection |
mm |
|
|
Controller |
RC-E5; RC-EX1A or RCN-KIT3-E |
|
