| Model Name |
|
MXZ-4D71VA |
| Type |
|
Inverter |
| Indoor Unit |
|
[See related products] |

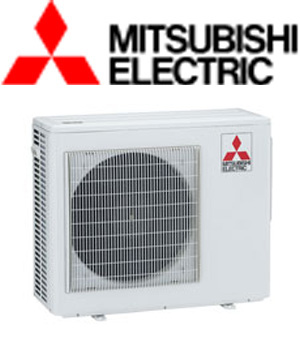

| Outdoor Unit |
|
MXZ-4D71VA |
| |
|
|
| Cooling |
|
|
| Capacity (Rated Conditions) |
kW |
7.1 |
| Capacity (Min - Max) |
kW |
3.7 - 8.8 |
| |
|
|
| EER (Rated Conditions, see note below) |
|
3.78 |
| Sound Pressure Levels - |
|
|
| Outdoor at 1m (Low - High) |
dBA |
45 - 50 |
| Sound Power Level - Outdoor |
dBA |
TBA |
| |
|
|
| Heating |
|
|
| Capacity (Rated Conditions) |
kW |
8.0 |
| Capacity (Min - Max) |
kW |
3.4 - 10.7 |
| |
|
|
| COP (Rated Conditions, see note below) |
|
4.35 |
| Sound Pressure Levels |
|
|
| Outdoor at 1m (Low - High) |
dBA |
48 - 54 |
| Sound Power Level - Outdoor |
dBA |
TBA |
| |
|
|
| Outdoor - Dimensions (HxWxD) |
mm |
710 x 840 x 330 |
| Weight - Outdoor |
kg |
58 |
| |
|
|
| Electrical Supply |
|
230 volt/ Single Phase / 50 Hertz - Outdoor Power Supply |
| |
|
|
| Breaker Size |
A |
25 |
| |
|
|
| Piping - max total length |
m |
60 |
| max individual circuit |
m |
25 |
| max height |
m |
15/10* |
| |
|
|
| Guaranteed Operating Range |
C |
-10 ~ +46 |
| |
|
-15 ~ +24 |
| |
|
|
| * If outdoor unit is installed above indoor units |
|
| |
|
|
| Note: EER & COP are calculated when max number of indoor units are connected |
