| Model Name |
|
|
|
PEA-RP250WHA |
| Type |
|
|
|
Inverter |
| Indoor Unit |
|
|
|
PEA-RP250WHA |
| Outdoor Unit - Single Phase |
|
|
|
|
| - Three Phase* |
|
|
|

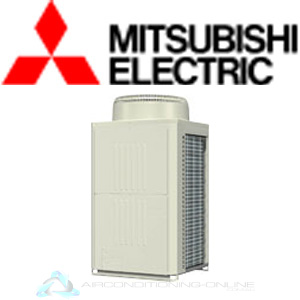

PUHZ-RP250YHM-A* |
| Cooling |
|
|
|
|
| Capacity (Rated Conditions) |
kW |
|
|
22 |
| Capacity (Min - Max) |
kW |
|
|
11.2 - 27 |
| Air Flow (Low - Hi) |
l/s |
|
|
967-1183-1400 |
| External Static Pressure |
Pa |
|
|
60-75-100-150 |
| EER (Rated Conditions) |
|
|
|
|
| Star Rating - Original calculation |
|
|
|
n/a |
| Star Rating - New calculation |
|
|
|
n/a |
| Sound Pressure Levels |
|
|
|
|
| Indoor at 1.5m (Low - Hi) |
dBA |
|
|
40-43-46 |
| Outdoor at 1m (Quiet Mode) |
dBA |
|
|
58 |
| Sound Power Level - Outdoor |
dBA |
|
|
tba |
| |
|
|
|
|
| Heating |
|
|
|
|
| Capacity (Rated Conditions) |
kW |
|
|
25 |
| Capacity (Min - Max) |
kW |
|
|
12.5 - 29 |
| Air Flow (Low - Hi) |
l/s |
|
|
967-1183-1400 |
| COP (Rated Conditions) |
|
|
|
tba |
| Star Rating - Original calculation |
|
|
|
n/a |
| Star Rating - New calculation |
|
|
|
n/a |
| Sound Pressure Levels |
|
|
|
|
| Indoor at 1.5m (Low - Hi) |
dBA |
|
|
40-43-46 |
| Outdoor at 1m |
dBA |
|
|
58 |
| Sound Power Level - Outdoor |
dBA |
|
|
tba |
| |
|
|
|
|
| Indoor - Dimensions (HxWxD) |
mm |
|
|
470x1370x1120 |
| Weight - Indoor |
kg |
|
|
108 |
| |
|
|
|
|
| Outdoor - Dimensions (HxWxD) |
mm |
|
|
1650x920x760 |
| Weight - Outdoor |
kg |
|
|
200 |
| |
|
|
|
|
| Electrical Supply - Single Phase |
|
|
|
|
| - Three Phase* |
|
415 volt / Three Phase / 50 Hertz |
| |
|
|
|
|
| Breaker Size - Single Phase |
A |
|
|
n/a |
| - Three Phase* |
A |
|
|
32 |
| |
|
|
|
|
| Piping - max length |
m |
|
|
75 |
| max height |
m |
|
|
30 |
| |
|
|
|
|
| Guaranteed Operating Range - Cooling |
°C |
|
|
-5 - 43 |
| - Heating |
°C |
|
|
-20 - 21 |
