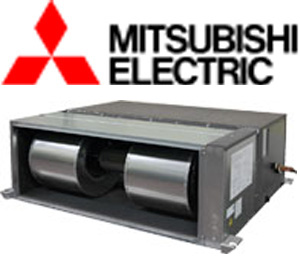

| Model Name |
|
PEA-RP170WJA |
| Type |
|
Inverter |
| Indoor Unit |
|
PEA-RP170WJA |
| Outdoor Unit - Single Phase |
|
PUHZ-RP170VKA |
| - Three Phase* |
|
PUHZ-RP170YKA2* |
| Cooling |
|
|
| Capacity (Rated Conditions) |
kW |
16 |
| Capacity (Min - Max) |
kW |
9 - 20 |
| Air Flow (Low - Hi) |
l/s |
833-1017-1200 |
| External Static Pressure |
Pa |
60-75-100-150 |
| EER (Rated Conditions) |
|
3.2 |
| Star Rating - Original calculation |
|
n/a |
| Star Rating - New calculation |
|
n/a |
| Sound Pressure Levels |
|
|
| Indoor at 1.5m (Low - Hi) |
dBA |
38-41-44 |
| Outdoor at 1m (Quiet Mode) |
dBA |
58 |
| Sound Power Level - Outdoor |
dBA |
tba |
| |
|
|
| Heating |
|
|
| Capacity (Rated Conditions) |
kW |
20 |
| Capacity (Min - Max) |
kW |
9.5 - 22.4 |
| Air Flow (Low - Hi) |
l/s |
833-1017-1200 |
| COP (Rated Conditions) |
|
3.33 |
| Star Rating - Original calculation |
|
n/a |
| Star Rating - New calculation |
|
n/a |
| Sound Pressure Levels |
|
|
| Indoor at 1.5m (Low - Hi) |
dBA |
38-41-44 |
| Outdoor at 1m |
dBA |
59 |
| Sound Power Level - Outdoor |
dBA |
tba |
| |
|
|
| Indoor - Dimensions (HxWxD) |
mm |
470x1370x1120 |
| Weight - Indoor |
kg |
108 |
| Outdoor - Dimensions (HxWxD) |
mm |
1338x1050x330+30 |
| Weight - Outdoor |
kg |
127 |
| Electrical Supply - Single Phase |
|
240volt /Single Phase / 50 Hertz |
| - Three Phase* |
|
415 volt / Three Phase / 50 Hertz |
| Breaker Size - Single Phase |
A |
n/a |
| - Three Phase* |
A |
32 |
| |
|
|
| Piping - max length |
m |
75 |
| max height |
m |
30 |
| |
|
|
| Guaranteed Operating Range - Cooling |
°C |
-51 |
| - Heating |
°C |
-41 |
*Indoor - wired control not included
