Inverter
What is an inverter?
Through new, advanced technology, Inverter air conditioners are more economical to operate and quieter to run than conventional units. They can handle greater extremes in temperature, are smoother and more stable in operation and reach the desired temperature more quickly than conventional air conditioners.

Inverter control
The Inverter component allows the outdoor unit to vary its speed and output to match the required capacity of the indoor unit. Thus, the Inverter model can achieve 30% more operating efficiency than conventional models and therefore, is much cheaper to run.

Comfort and Stability
The air conditioner’s output is stabilised at the optimum setting within the range from maximum to minimum to match the load, which is affected by factors such as the room temperature and the number of people present.
High Efficiency Technology
Significantly higher efficiency is realised by using DC twin rotary compressor, DC inverter control and DC fan motor technologies.

Product Features
Universal comfort
With slim and lightweight design, these models are ideal either for ceiling or floor installation without modification. Extreme quiet and energy efficient, they are ideal for residential or commercial situations.

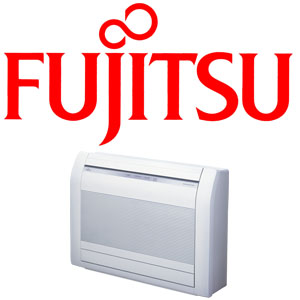

Floor Console
Flexible and easy installation

2-Fan and Wide Airflow

Easy Maintenance
Washable panel removable

Ceiling and Floor Console
Flexible installation

Double auto swing
A combination of right/left and up/down directional swing allows 3-dimensional air direction control.

Under Ceiling System
Flexible installation

Multi auto swing
A combination of right/left and up/down directional swing allows 3-dimensional air direction control.

What is an inverter?
Through new, advanced technology, Inverter air conditioners are more economical to operate and quieter to run than conventional units. They can handle greater extremes in temperature, are smoother and more stable in operation and reach the desired temperature more quickly than conventional air conditioners.

Inverter control
The Inverter component allows the outdoor unit to vary its speed and output to match the required capacity of the indoor unit. Thus, the Inverter model can achieve 30% more operating efficiency than conventional models and therefore, is much cheaper to run.

Comfort and Stability
The air conditioner’s output is stabilised at the optimum setting within the range from maximum to minimum to match the load, which is affected by factors such as the room temperature and the number of people present.
High Efficiency Technology
Significantly higher efficiency is realised by using DC twin rotary compressor, DC inverter control and DC fan motor technologies.

Product Features
Universal comfort
With slim and lightweight design, these models are ideal either for ceiling or floor installation without modification. Extreme quiet and energy efficient, they are ideal for residential or commercial situations.
Floor Console
Flexible and easy installation

2-Fan and Wide Airflow

Easy Maintenance
Washable panel removable

Ceiling and Floor Console
Flexible installation

Double auto swing
A combination of right/left and up/down directional swing allows 3-dimensional air direction control.

Under Ceiling System
Flexible installation

Multi auto swing
A combination of right/left and up/down directional swing allows 3-dimensional air direction control.

| Model No. - Indoor | AGTV09LAC |
| Model No. - Outdoor | AOTV09LAC |
| Reverse Cycle System | Yes |
| Cooling Capacity (Watts) | 2600 |
| Cooling Capacity (BTU/h) | 8900 |
| Range (Watts) | 900-3500 |
| Range (BTU/h) | 3100-11900 |
| Heating Capacity (Watts) | 3500 |
| Heating Capacity (BTU/h) | 11900 |
| Range (Watts) | 900-5500 |
| Range (BTU/h) | 3100-18800 |
| Power Supply (Volts) | 240 |
| Phase-Frequency (Ph - Hz) | 1-50 |
| Power Supply Attachment | Outdoor |
| Running Current, Cooling (Amps) | 2.8 |
| Running Current, Range (Amps) | 7 |
| Running Current, Heating (Amps) | 3.8 |
| Running Current, Range (Amps) | 10 |
| Input, Cooling (Watts) | 600 |
| Input, Range (Watts) | 250-1400 |
| Input, Heating (Watts) | 810 |
| Input, Range (Watts) | 250-2200 |
| Moisture Removal (l/hr) | 1.3 |
| E.E.R. - Cooling | 4.33 |
| C.O.P. - Heating | 4.32 |
| Star Rating - Cooling | 3.5 |
| Star Rating - Heating | 3.5 |
| Fan Speed | 4 |
| Air Circulation, High (l/s) | 158 |
| Compressor Type | Rotary |
| Dimensions - Inside Unit (HxWxD mm) | 600x740x200 |
| Weight - Inside Unit (kg) | 14 |
| Dimensions - Outside Unit (HxWxD mm) | 540x790x290 |
| Weight - Outside Unit (kg) | 36 |
| I.U. Sound Pressure Level (dBA@1mtr) | 40 |
| O.U. Sound Pressure Level (dBA@1mtr) | 47 |
| Refrigerant Type | R410A |
| Connection Pipe Sizes, Gas (mm) | 9.52 |
| Connection Pipe Sizes, Liquid (mm) | 6.35 |
| Pre Charged Length (Metre) | 15 |
| Minimum Pipe Length (Metre) | 3 |
| Maximum Pipe Length (Metre) | 20 |
| Maximum Pipe Height (Metre) | 15 |
| Pipe Connection Methods | Flare |
| Outdoor operating Temp, Cooling ℃ | -10 to 43 |
| Outdoor operating Temp, Heating ℃ | -15 to 24 |
