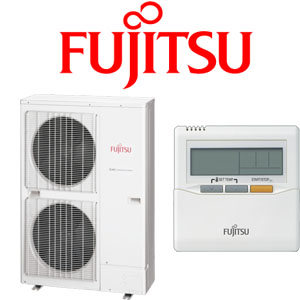

Model No. - Indoor

ARTG36LHTB

Model No. - Outdoor

AOTG36LATT

Reverse Cycle System

Yes

Capacity Class

Cooling Capacity (Watts)

10,500

Cooling Capacity (BTU/h)

35,800

Range (Watts)

5,000 - 11,400

Range (BTU/h)

17,100 - 38,900

Heating Capacity (Watts)

12,100

Heating Capacity (BTU/h)

41,300

Range (Watts)

5,100 - 14,000

Range (BTU/h)

17,400 - 47,800

Power Supply (Volts)

415

Phase-Frequency (Ph - Hz)

3 - 50

Power Supply Attachment

Outdoor

Plug Size (If Applicable)

N/A

Running Current, Cooling (Amps)

4.6

Running Current, Range (Amps)

Max 9.0

Input, Cooling (Watts)

3,180

Input, Range (Watts)

Max 5,630

Running Current, Heating (Amps)

4.8

Running Current, Range (Amps)

Max 9.0

Input, Heating (Watts)

3,300

Input, Range (Watts)

Max 5,630

Input (Watts)

Moisture Removal (l/hr)

1.5

E.E.R. - Cooling

3.3

C.O.P. - Heating

3.67

Star Rating - Cooling

Star Rating - Heating

Fan Speed

4

Air Circulation, High (l/s)

695

Compressor Type

DC Rotary

Dimensions - Inside Unit (HxWxD mm)

400 x 1,050 x 500

Weight - Inside Unit (kg)

39

Dimensions - Outside Unit (HxWxD mm)

1,290 x 900 x 330

Weight - Outside Unit (kg)

104

I.U. Sound Pressure Level (dBA@1mtr)

41

O.U. Sound Pressure Level (dBA@1mtr)

51

O.U. Sound Power Level (dBA)

67

Refrigerant Type

R410A

Connection Pipe Sizes, Gas (mm)

15.88

Connection Pipe Sizes, Liquid (mm)

9.52

Pre Charged Length (Metre)

30

Minimum Pipe Length (Metre)

5

Maximum Pipe Length (Metre)

75

Maximum Pipe Height (Metre)

30

Pipe Connection Methods

Flare

Outdoor operating Temp, Cooling Degrees C

-15 to 46

Outdoor operating Temp, Heating Degrees C

-15 to 24
