Model No. - Indoor |
ARTC90LATU |
|

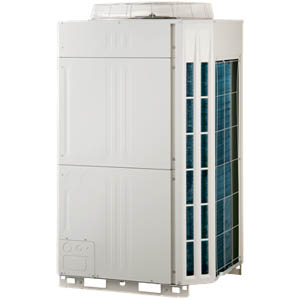

Model No. - Outdoor |
AOTA90LALT |
|
Reverse Cycle System |
Yes |
|
Capacity Class |
|
|
Cooling Capacity (Watts) |
25,000 |
|
Cooling Capacity (BTU/h) |
85,300 |
|
Range (Watts) |
11,200 - 28,000 |
|
Range (BTU/h) |
38,200 - 95,500 |
|
Heating Capacity (Watts) |
28,000 |
|
Heating Capacity (BTU/h) |
95,500 |
|
Range (Watts) |
12,500 - 31,500 |
|
Range (BTU/h) |
42,600 - 107,500 |
|
Power Supply (Volts) |
415 |
|
Phase-Frequency (Ph - Hz) |
3-50 |
|
Power Supply Attachment |
Outdoor |
|
Plug Size (If Applicable) |
|
|
Running Current, Cooling (Amps) |
11.5 |
|
Running Current, Range (Amps) |
Max 25.8 |
|
Input, Cooling (Watts) |
7,820 |
|
Input, Range (Watts) |
12,500 |
|
Running Current, Heating (Amps) |
12.1 |
|
Running Current, Range (Amps) |
Max 25.8 |
|
Input, Heating (Watts) |
8,240 |
|
Input, Range (Watts) |
12,500 |
|
Input (Watts) |
|
|
Moisture Removal (l/hr) |
6 |
|
E.E.R. - Cooling |
3.2 |
|
C.O.P. - Heating |
3.4 |
|
Star Rating - Cooling |
|
|
Star Rating - Heating |
|
|
Fan Speed |
3 |
|
Air Circulation, High (l/s) |
1347 |
|
Compressor Type |
Twin Rotary |
|
Dimensions - Inside Unit (HxWxD mm) |
550 x 1,587 x 700 |
|
Weight - Inside Unit (kg) |
110 |
|
Dimensions - Outside Unit (HxWxD mm) |
1,690 x 930 x 765 |
|
Weight - Outside Unit (kg) |
215 |
|
I.U. Sound Pressure Level (dBA@1mtr) |
49 |
|
O.U. Sound Pressure Level (dBA@1mtr) |
59 |
|
O.U. Sound Power Level (dBA) |
78 |
|
Refrigerant Type |
R410A |
|
Connection Pipe Sizes, Gas (mm) |
25.4 |
|
Connection Pipe Sizes, Liquid (mm) |
12.7 |
|
Pre Charged Length (Metre) |
20 |
|
Minimum Pipe Length (Metre) |
5 |
|
Maximum Pipe Length (Metre) |
75 |
|
Maximum Pipe Height (Metre) |
30 |
|
Pipe Connection Methods |
Brazing |
|
Outdoor operating Temp, Cooling ℃ |
-5 to 46 |
|
Outdoor operating Temp, Heating ℃ |
-15 to 24 |
