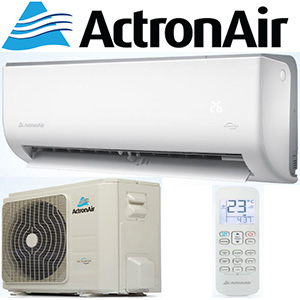

Wall Split Systems
The Aurora series of reverse cycle wall split air conditioners combines stylish good looks with exceptional performance.
- Aurora Wall Split systems are an ideal solution to condition a single room or open plan area.
- Superior features for better comfort, reliability and performance
- Engineered to perform in one of the harshest climates on Earth – Australia. Superior operating range of up to 50°C.
- Ideal for both residential and commercial applications.
Sophisticated modern design to complement your décor
|
|
|
Remote ControlThe contemporary design of the remote controller is the perfect balance between form and function. The minimalist design is complemented by stainless steel buttons and a large display for ease of use. Features Include
|
Full DC Inverter Technology
Full DC inverter technology for improved energy efficiency, reduced running costs, reduced noise and better temperature control.
|
|
DC Inverter Technology
Advanced DC Inverter technology delivers improved energy efficiency and reduced runnings costs. The DC Inverter compressor and fans work in unison to efficiantly deliver just the right amount of cooling or heating to match your needs.
DC Inverter Compressor
A high efficiency DC Inverter compressor adjusts its capacity to provide you with the optimum amount of heating and cooling.
- 35% more efficient than conventional AC technology
- Reduced noise vs. AC technology
DC Indoor Fan
The DC indoor fan can adjust airflow for optimum comfort.
- Up to 40% more efficient than AC technology Airflow adjustment from 30 - 100% for better airflow control
- Precise fan speed control
- Reduced noise vs. AC technology
DC Outdoor Fan
A high efficiency DC outdoor fan delivers improved performance and reduced noise.
Superior operating range up to 50ºC
Aurora is designed with a superior operating range of up to 50ºC. Most other inverter systems only have a maximum operating range of 43-46ºC.
Faster Heating and Cooling with Turbo Mode
Multi-directional airflow with memory function
Effectively heating and cooling your home requires good air circulation.
Up-down airflow can be adjusted from the remote controller or set to auto swing. Left-right airflow can be adjusted from the remote controller or set to auto swing.
Multi-directional airflow available on models SWB52E - SWB82E. Other models require manual adjustment for left-right operation
The memory function will automatically restore the louvre to the last position before the air conditioner was switched off.
Follow Me Function for better temperature control
‘Follow Me’ function allows you to use your remote control as a temperature sensor for optimum comfort in larger open plan areas.
Personal Comfort
For the ultimate in comfort, just place the remote control where you are in the room and press the 'Follow Me' button.
HEPA-BIO filter
High Efficiency Particulate Air (HEPA) filter with bio-enzymes help keep your home healthy. The HEPA Filter captures 99% of particles such as dust, pollen, fungi and bacteria.
Long airflow for more powerful heating and cooling
Long airflow is ideal for large open plan areas.
12 speed auto fan for improved airflow control
Sleep mode to maximise comfort while you sleep
For good night’s sleep, the Sleep Mode is a set temperature program designed to maximise comfort while you sleep.
The sleep function automatically adjusts the temperature by 1ºC per hour for the first 2 hours and then holds steady for the next 5 hours before automatically turning off.
Quiet mode reduces sound down to a whisper!
Sleep is also enhanced with the Quiet Mode. The Quiet Mode can reduce sound down to as low as 23dB*. This mode allows the system to operate at a low frequency reducing vibrations, electrical, mechanical and airflow noise.
*Model SWB26E
Demand Response Enabled
Demand Response Enabled so you can take advantage of Peak Smart options from electricity providers.
Remote on/off function
Ideal for schools, mining operations and other commercial applications.
Coil protection
Coil protection for long lasting performance, reducing corrosion potential from the elements and helping the defrost process for improved heating efficiencies.
Auto restart
In the event of a power failure, your air conditioner will switch back into action once power is restored.
Self clean program
The self clean function provides a four stage indoor coil cleaning cycle to minimise build up of dust and reduces mould growth.
| Technical Information | ||
| MODEL NUMBER OUTDOOR | SWB26C | |
| MODEL NUMBER INDOOR | SWB26E | |
| Nett (Rated) Capacity (kW) | Cooling Rated (min - max) | 2.60 (1.37-2.80) |
| (AS/NZS3823.1.2) | Heating Rated (min - max) | 2.90 (1.48-3.00) |
| Input Power (kW) | Cooling Rated |
0.67 |
| (AS/NZS3823.1.2) | Heating Rated |
0.79 |
| (1) EER Rated (AS/NZS3823.1.2) | Cooling | 3.88 |
| (2) COP Rated (AS/NZS3823.1.2) | Heating | 3.67 |
| Power Supply - (V / Ph / Hz) | Outdoor | 220-240V / 1Ph / 50Hz |
| Indoor | 220-240V / 1Ph / 50Hz | |
| Rated Load Amps (AS/NZS3823.1.2) | Cooling Heating |
3.1 3.7 |
| Full Load Amps (AS/NZS3823.1.2) | 9.5 | |
| Moisture Removal L/hr | 1.0 | |
| IP Rating | Outdoor | IP44 |
| Indoor | IPXO | |
| Compressor | Type / No. Per Unit | Rotary DC Inverter / 1 |
| Refrigerant | R410a | |
| Indoor Airflow (L/s) | Turbo | 180 |
| High | 167 | |
| Medium Low Quiet |
144 111 69 |
|
| Outdoor Dimensions (mm) | Depth | 285 |
| Height | 590 | |
| Width | 760 | |
| Indoor Dimensions (mm) | Depth | 198 |
| Height | 280 | |
| Width | 750 | |
| Nominal Weight (kgs) | Outdoor | 34 |
| Indoor | 7.6 | |
| (3) Sound Pressure Level (dBA) @ 1m | Outdoor |
54 |
| (4) Sound Power Level (dBA) | Outdoor |
62 |
| MEPS Certified | Yes | |
| Features | ||
| Star Rating - Cooling [AS/NZS 3823.2.] | 3 star | |
| Star Rating - Heating [AS/NZS 3823.2.] | 2.5 star | |
| Outdoor Operating Range | Cooling | 0ºC to 50ºC |
| Heating | -15ºC to 34ºC | |
| “Follow Me” function | Yes | |
| Sleep function | Yes | |
| Turbo | Yes | |
| Self Clean function | Yes | |
| Timer ON/OFF | Yes | |
| 4-way Automatic Multi-directional Airflow | ||
| Vertical auto-swing (up/down) | Motorised | |
| Horizontal auto-swing (left/right) | Manual | |
| Field Piping and Connections | ||
| Refrigerant Charge | Factory Charge - (g) | 1070 |
| Pre-Charge Length - (m) | 5 | |
| Additional Refrigerant Charge - (g/m) | 20 | |
| Maximum Field Pipe Length Range - (m) | 20 | |
| Maximum Vertical Height Differential - (m) included in max length | 8 | |
| Field Pipe Size | Liquid Pipe - mm (inch) | Φ6.35 (1/4”) |
| Gas Pipe - mm (inch) | Φ9.52 (3/8”) | |
| Outdoor Unit Connection | Liquid Pipe - mm (inch) | Φ6.35 (1/4”) |
| Gas Pipe - mm (inch) Φ | Φ9.52 (3/8”) | |
| Indoor Unit Connection | Liquid Pipe - mm (inch) | Φ6.35 (1/4”) |
| Gas Pipe - mm (inch) | Φ9.52 (3/8”) | |
| Plug Type | 10 Amp†/SAA | |
| Application Area (sqm) - guide only as this is dependant on heat load calulation | 13-22 | |
