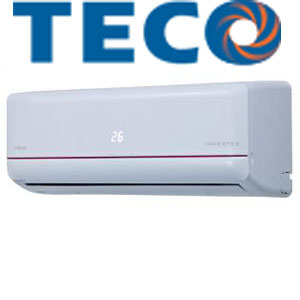

Model
|
Indoor
|
TWS70HVDMHBE
|
|
|
Outdoor
|
TSO70HVDMHBE
|
||
|
COOLING
|
Capacity (MEPS)
|
W
|
7000
|
|
Running Current
|
A
|
9.3 | |
|
Input
|
W
|
2100
|
|
|
A.E.E.R Rated (Part Load)
|
3.30
|
||
|
Star Rating
|
2.5 | ||
|
Outdoor Operating Temperature Range
|
ºC
|
-15ºC~50ºC
|
|
|
HEATING
|
Capacity (MEPS)
|
W
|
7200 |
|
Running Current
|
A
|
8.5 | |
|
Input
|
W
|
1900
|
|
|
A.C.O.P Rated (Part Load)
|
3.74
|
||
|
Star Rating
|
3 | ||
|
Outdoor Operating Temperature Range
|
ºC
|
-15ºC~30ºC
|
|
|
Power Supply
|
V
|
230
|
|
|
Phase - Freq.
|
Ph-Hz
|
1 - 50
|
|
|
Power Supply Attachment (Indoor / Outdoor)
|
Outdoor
|
||
|
Moisture Removal
|
L/Hr
|
2.6 | |
|
Fan Speeds
|
3 + Auto
|
||
|
Air Circulation (HI)
|
L/s
|
386 | |
|
Compressor Type
|
Rotary
|
||
|
I.U. Sound Pressure Level (HI)
|
dBA@1m
|
51/45/36
|
|
|
O.U. Sound Pressure Level
|
dBA@1m
|
60 | |
|
O.U. Sound Power Level
|
dB(A)
|
69 | |
|
Refrigerant Type
|
R410A
|
||
|
Connection Pipe Sizes (mm)
|
Liquid
|
9.52 | |
|
Gas
|
15.88
|
||
|
Max. Pipe Length
|
Metre
|
50
|
|
|
Max. Height Difference
|
Metre
|
25 | |
|
Pipe Connection Method
|
Flare
|
||
|
Dimentsions (mm)
|
Indoor
|
HxWxD
|
343x1186x258
|
|
Net Weight
|
Kg
|
18
|
|
|
Outdoor
|
HxWxD
|
810x945x395
|
|
|
Net Weight
|
Kg
|
54 |
