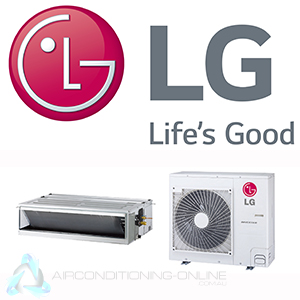

LG Air Conditioning B24AWY-GMD Slim Mid static duct - Inverter & Wired wall controller

Indoor				B24AWYNGMD
Capacity	Cooling	Min/Rated/Max	kW	2.8 / 7.1 / 7.8
Capacity	Heating	Min/Rated/Max	kW	3.2 / 8.1 /8.8
Power Input	Cooling	Rated	kW	2.03
Power Input	Heating	Rated	kW	2.23
Power Supply			V/ɸ/Hz	220-240 / 1 / 50
EER				3.57
COP				3.54
Piping Connection	Liquid		mm	ɸ 9.52
	Gas		mm	ɸ 15.88
	Drain	O.D./I.D.	mm	ɸ 32 / 25
Air Flow Rate		High/Medium/Low	m3/min	22.0 / 20.0 / 18.0
Air Flow Rate			l/s	366 / 333 / 300
Sound Pressure	Cooling	High/Medium/Low	dBA	37 / 35 / 34
Sound Pressure	Heating	High/Medium/Low	dBA	37 / 35 / 34
Sound Power	Cooling	Max	dBA	62
Dehumidification Rate			l/h	2.8
Dimensions	Body	WxHxD	mm	900 X 270 X 700
Net Weight	Body		kg	25.3 (55.8)
Supply Air Spigot		WxH	mm	857 x 200
Return Air Spigot		WxH	mm	850 x 231
Fan Motor Output			W	136.5 x 1
External Static Pressure (-pre set)		Min~Max	Pa	25 - 147 (58.6 factory)

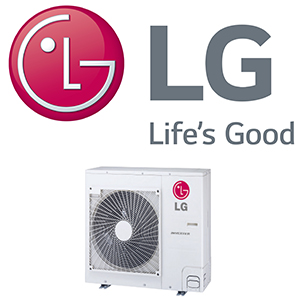

Outdoor				B24AWYUGMD
Compressor	Type			Twin Rotary
Airflow Rate		Rated	m3/min	58 x 1
Airflow Rate			l/s	966 x 1
Sound Pressure	Cooling	Rated	dBA	48
Sound Pressure	Heating	Rated	dBA	52
Sound Power	Cooling	Max	dBA	62
Dimensions	WxHxD		mm	950 X 834 X 330
Net Weight			kg	60
Refrigerant	Type			R410A
	Charge		g	2,000
	Additional Charge (after 7.5m)		g/m	40
Operation Range (Outdoor)	Cooling	Min~Max	⁰C DB	(-)15 ~ 48
Operation Range (Outdoor)	Heating	Min~Max	⁰C WB	(-)18 ~ 18
Power Supply			V/ɸ/Hz	220~240 / 1 / 50
Running Current	Cooling/Heating	Rated	A	8.8/9.7
Power Supply Cable			N x mm2	3C x 2.5
Transmission Cable			N x mm2	4C x 0.75
Circuit Breaker			A	30
Piping Length Total		Max	m	50
Piping Elevation Difference	IDU-ODU	Max	m	30
Piping Connection	Liquid		mm	ɸ 9.52
Piping Connection	Gas		mm	ɸ 15.88
