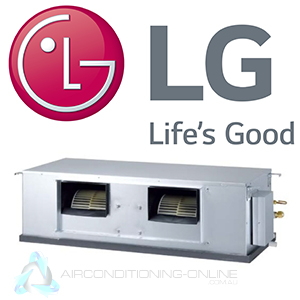

LG Air Conditioning B42AWY-7G5 Premium High static duct - Inverter. Single Phase & Wired wall controller

Indoor				B42AWYN7G5
Capacity	Cooling	Min/Rated/Max	kW	4.9 / 12.3 / 14.8
Capacity	Heating	Min/Rated/Max	kW	5.6 / 14.1 / 16.9
Power Input	Cooling	Rated	kW	3.65
Power Input	Heating	Rated	kW	3.82
Power Supply			V/ɸ/Hz	230~240 / 1 / 50
EER				3.37
COP				3.69
Piping Connection	Liquid		mm	ɸ 9.52
	Gas		mm	ɸ 15.88
	Drain	O.D./I.D.	mm	ɸ 32/25
Air Flow Rate		High/Medium/Low	m3/min	48.0 / 42.0 / 36.0
Air Flow Rate			l/s	800/700/600
Sound Pressure	Cooling	High/Medium/Low	dBA	46/45/44
Sound Pressure	Heating	High/Medium/Low	dBA	46/45/44
Sound Power	Cooling	Max	dBA	-
Dehumidification Rate			l/h	2.7
Dimensions	Body	WxHxD	mm	1,320 X 400 X 534
Net Weight	Body		kg	52
Supply Air Spigot		WxH	mm	840 X 287
Return Air Spigot		WxH	mm	1,172 X 317
Fan Motor Output			W	185 X 2
External Static Pressure (-pre set)		Min~Max	Pa	62-200(130 factory)
Outdoor				B42AWYU3G5
Compressor	Type			Twin Rotary
Airflow Rate		Rated	m3/min	55X2
Airflow Rate			l/s	917*2
Sound Pressure	Cooling	Rated	dBA	52
Sound Pressure	Heating	Rated	dBA	54
Sound Power	Cooling	Max	dBA	67
Dimensions	WxHxD		mm	950 X 1,380 X 330
Net Weight			kg	92
Refrigerant	Type			R410A
	Charge		g	3,400
	Additional Charge (after 7.5m)		g/m	40
Operation Range (Outdoor)	Cooling	Min~Max	⁰C DB	-10 ~ 48
Operation Range (Outdoor)	Heating	Min~Max	⁰C WB	-15 ~ 18
Power Supply			V/ɸ/Hz	220~240 / 1 / 50
Running Current	Cooling/Heating	Rated	A	16.0/17.0
Power Supply Cable			N x mm2	3 x5.0
Transmission Cable			N x mm2	4 x1.0
Circuit Breaker			A	40
Piping Length Total		Max	m	50
Piping Elevation Difference	IDU-ODU	Max	m	30
Piping Connection	Liquid		mm	ɸ 9.52
Piping Connection	Gas		mm	ɸ 15.88
