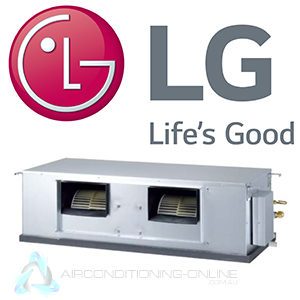

LG Air Conditioning B30AWY-7G5A Standard High static duct - Inverter. Single Phase & Wired wall controller

Indoor				B30AWYN7G5A
Capacity	Cooling	Min/Rated/Max	kW	3.2 ~ 8 ~ 8.8
Capacity	Heating	Min/Rated/Max	kW	3.7 ~ 8.8 ~ 9.6
Power Input	Cooling	Rated	kW	2.59
Power Input	Heating	Rated	kW	2.67
Power Supply			V/ɸ/Hz	220-240 / 1 / 50
EER				3.09
COP				3.29
Piping Connection	Liquid		mm	ɸ 9.52
	Gas		mm	ɸ 15.88
	Drain	O.D./I.D.	mm	ɸ 32 / 25
Air Flow Rate		High/Medium/Low	m3/min	32.0/ 26.0 / 20.0
Air Flow Rate			l/s	533 / 433 / 333
Sound Pressure	Cooling	High/Medium/Low	dBA	44 / 43 / 42
Sound Pressure	Heating	High/Medium/Low	dBA	44 / 43 / 42
Sound Power	Cooling	Max	dBA	-
Dehumidification Rate			l/h	1.8
Dimensions	Body	WxHxD	mm	1,320 X 400 X 534
Net Weight	Body		kg	48 (105.8)
Supply Air Spigot		WxH	mm	840 x 287
Return Air Spigot		WxH	mm	1,172 x 317
Fan Motor Output			W	350 x 1
External Static Pressure (-pre set)		Min~Max	Pa	60 - 200 (60 factory)
Outdoor				B30AWYU4G5A
Compressor	Type			Twin Rotary
Airflow Rate		Rated	m3/min	58 x 1
Airflow Rate			l/s	966 x 1
Sound Pressure	Cooling	Rated	dBA	48
Sound Pressure	Heating	Rated	dBA	52
Sound Power	Cooling	Max	dBA	65
Dimensions	WxHxD		mm	870 X 808 X 320
Net Weight			kg	56
Refrigerant	Type			R410A
	Charge		g	2,200
	Additional Charge (after 20m)		g/m	40
Operation Range (Outdoor)	Cooling	Min~Max	⁰C DB	(-)10 ~ 48
Operation Range (Outdoor)	Heating	Min~Max	⁰C WB	(-)10 ~ 24
Power Supply			V/ɸ/Hz	220~240 / 1 / 50
Running Current	Cooling/Heating	Rated	A	11.6/12.0
Power Supply Cable			N x mm2	3C X 2.5
Transmission Cable			N x mm2	4C X 0.75
Circuit Breaker			A	40
Piping Length Total		Max	m	50
Piping Elevation Difference	IDU-ODU	Max	m	30
Piping Connection	Liquid		mm	ɸ 9.52
Piping Connection	Gas		mm	ɸ 15.88
