LG Air Conditioning B18AWY-GMD Slim Low static duct - Inverter & Wired wall controller
LG Air Conditioning B18AWY-GMD Slim Low static duct - Inverter & Wired wall controller
LG Air Conditioning B18AWY-GMD Slim Low static duct - Inverter & Wired wall controller

LG Air Conditioning B18AWY-GMD Slim Low static duct - Inverter & Wired wall controller

Check Delivery Cost
  • For Advanced Installations, please click here to Request a Quote
  • Please note: All products come with a 5 year standard manufacturers warranty
Model: Set B18AWY-GMD LG Slim Low static duct - Inverter. Indoor B18AWYNGMD - Outdoor B18AWYUGMD / 5.1kW Cooling - 6.0kW Heating Capacity with wired wall controller PQRCVSL0QW
Quantity:

Our Price:
$ 2175.00

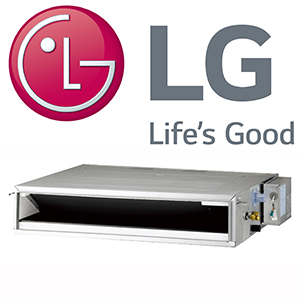

Indoor B18AWYNGMD
Capacity Cooling  Min/Rated/Max kW 2.0 / 5.1 / 6.0
Heating Min/Rated/Max kW 2.2 / 6.0 / 7.3
Power Input Cooling Rated kW 1.65
Heating Rated kW 1.82
Power Supply V/ɸ/Hz 220-240 / 1 / 50
EER 3.09
COP 3.3
Piping Connection Liquid mm ɸ 6.35
Gas mm ɸ 12.7
Drain O.D./I.D. mm ɸ 32 / 25
Air Flow Rate High/Medium/Low                                  m3/min 15.0 / 12.5 / 10.0
                                           l/s 250 / 208 / 166
Sound Pressure Cooling High/Medium/Low dBA 36 / 34 / 31
Heating High/Medium/Low dBA 36 / 34 / 31
Sound Power Cooling Max dBA 54
Dehumidification Rate l/h 1.7
Dimensions Body WxHxD mm 900 X 190 X 700
Net Weight Body kg 23.0 (50.7)
Supply Air Spigot WxH mm 860 x 148
Return Air Spigot WxH mm 860 x 155
Fan Motor Output W 19X1+5X1
External Static Pressure (-pre set)  Min~Max Pa 0 - (24.5) - 50

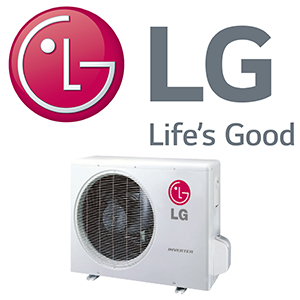

Outdoor B18AWYUGMD
Compressor Type Twin Rotary
Airflow Rate Rated m3/min 50 x 1
                        l/s 833 x 1
Sound Pressure Cooling Rated dBA 48
Heating Rated dBA 51
Sound Power Cooling Max dBA 60
Dimensions WxHxD mm 870 X 655 X 320
Net Weight kg 46
Refrigerant Type R410A
Charge g 1,400
Additional Charge (after 7.5m) g/m 20
Operation Range (Outdoor) Cooling Min~Max ⁰C DB (-)15 ~ 48
Heating Min~Max ⁰C WB (-)18 ~ 18
Power Supply V/ɸ/Hz 220~240 / 1 / 50
Running Current Cooling/Heating Rated A 7.2/7.9
Power Supply Cable N x mm2 3C x 2.5
Transmission Cable N x mm2 4C x 0.75
Circuit Breaker A 20
Piping Length Total   Max m 40
Piping Elevation Difference IDU-ODU Max m 30
Piping Connection Liquid mm ɸ6.35
Gas mm ɸ12.7
