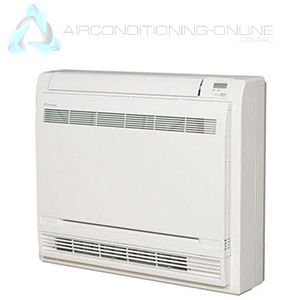

Indoor Unit |
FVXS25RV1A |
| Model |
Outdoor Unit |
RXS25RV1A |
| |
|
|
| |
kW |
2.46 (1.3 ~ 3.0) / - |
2.90 (1.3 ~ 4.5) / 3.10 |
| Capacity |
Btu/h |
8,400 (4,400 ~ 10,200) /- |
9,900 (4,400 ~ 15,400) / |
| Rated (Min. ~ Max.) / Low Temperature |
10,600 |
| |
kcal/h |
2,120 (1,120 ~ 2,580) /- |
2,490 (1,120 ~ 3,870) / |
| |
2,670 |
| Moisture Removal |
L/h |
1.2 |
|
| Running Current (Rated) |
A |
3.6 - 3.4 - 3.3 |
3.6 - 3.5 - 3.3 |
| Power Consumption |
590 (300 ~ 920) /- |
630 (290 ~ 1,390) / 0.96 |
| Rated (Min. ~ Max.) (W) / Low Temperature (kW) |
| Power Factor (Rated) |
% |
78.5 |
79 |
| COP Rated (Min. ~ Max.) |
W/W |
4.17 (4.33 ~ 3.26) |
4.60 (4.48 ~ 3.24) |
| EER Rated (Min. ~ Max.) |
Btu/ h.W |
14.2 (14.7 ~ 11.1) |
15.7 (15.2 ~ 11.1) |
| |
Liquid |
mm |
f 6.4 |
| Piping Connections |
Gas |
mm |
f 9.5 |
| |
Drain |
mm |
f 20 |
| Heat Insulation |
Both Liquid and Gas Pipes |
| Max. Interunit Piping Length |
m |
20 |
| Max. Interunit Height Difference |
m |
15 |
| Chargeless |
m |
10 |
| Amount of Additional Charge of Refrigerant |
g/m |
20 |
| Indoor Unit |
FVXS25RV1A |
| Front Panel Colour |
White |
| |
H |
M3/min(cfm) |
8.2 (290) |
10.2 (360) |
| Airflow Rate |
M |
6.5 (230) |
7.9 (279) |
| |
L |
4.8 (169) |
5.0 (177) |
| |
SL |
4.1 (145) |
4.4 (155) |
| |
Type |
Turbo Fan |
| Fan |
Motor Output |
W |
48 |
| |
Speed |
Steps |
5 Steps, Quiet, Auto |
| Air Direction Control |
Right, Left, Upwards, Downwards |
| Air Filter |
Removable, Washable, Mildew Proof |
| Running Current (Rated) |
A |
0.14 - 0.13 - 0.12 |
0.24 - 0.23 - 0.22 |
| Power Consumption (Rated) |
W |
15 |
28 |
| Power Factor (Rated) |
% |
50.2 |
52.8 |
| Temperature Control |
Microcomputer Control |
| Dimensions (H x W x D) |
mm |
600 x 700 x 210 |
| Packaged Dimensions (H x W x D) |
mm |
696 x 786 x 280 |
| Weight (Mass) |
kg |
14 |
| Gross Weight (Gross Mass) |
kg |
18 |
| Sound Pressure Level |
H / M / L / SL |
dB(A) |
38 / 32 / 26 / 23 |
41 / 34 / 26 / 23 |
| Sound Power Level |
dB(A) |
50 |
53 |
| Outdoor Unit |
RXS25RV1A |
| Casing Colour |
Ivory White |
| |
Type |
Hermetically Sealed Swing Type |
| Compressor |
Model |
1YC23AEXDA |
| |
Motor Output |
W |
600 |
| Refrigerant Oil |
Type |
FVC50K |
| Charge |
L |
0.375 |
| Refrigerant |
Type |
R-410A |
| Charge |
kg |
1 |
| Airflow Rate |
H |
M3/min(cfm)
|
33.5 (1,183) |
30.2 (1,066) |
| SL |
30.1 (1,063) |
25.6 (904) |
| Fan |
Type |
Propeller |
| Motor Output |
W |
33 |
| Running Current (Rated) |
A |
3.5 - 3.3 - 3.2 |
3.4 - 3.2 - 3.1 |
| Power Consumption (Rated) |
W |
575 |
602 |
| Power Factor (Rated) |
% |
73.5 |
80.8 |
| Dimensions (H x W x D) |
mm |
550 x 765 x 285 |
| Packaged Dimensions (H x W x D) |
mm |
589 x 882 x 363 |
| Weight (Mass) |
kg |
34 |
| Gross Weight (Gross Mass) |
kg |
38 |
| Sound Pressure Level |
H / SL |
dB(A) |
46 / 43 |
50 / 44 |
| Sound Power Level |
H |
dB(A) |
58 |
62 |
| Drawing No. |
3D106622 |
