ESP = Energy Smart Performance

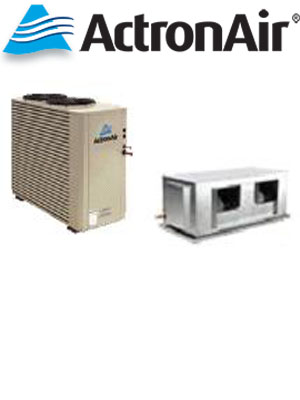

SRD151C Digital Outdoor Single Phase - Includes LM7-D wired controller.
SRV151E Variable Indoor - Includes 20m 4 core Data cable for controller.
SRD151C Digital Outdoor Single Phase - Includes LM7-D wired controller.
SRV151E Variable Indoor - Includes 20m 4 core Data cable for controller.
The ActronAir® ESP Plus® ducted reverse cycle air conditioning range uses advanced airflow control to deliver even more savings.
- Award winning energy efficient air conditioner design
- Independent energy modelling indicates energy consumption can be reduced by up to 61%* vs conventional air conditioning systems.
- Digital variable capacity compressor delivers 10 to 100% capacity for maximum performance.
- Air conditioning with advanced airflow capability
- Quiet start Variable Fan Technology (VFT)
- Automatically senses when zones are on or off and intuitively adjusts airflow.
- Advanced zoning capability to suit your lifestyle and saves even more energy
- ESP Plus® is the first and only fully integrated ducted air conditioning product with a zoning system that varies airflow to a minimum zone.
- Fully integrated 8 Zone controller
- Operate as little as 1 zone in your home. Ideal for those hot summer nights where you only want to keep your bedroom comfortable without wasting energy cooling the rest of your home.
- Quick and precise temperature control
- Sound Reduction System (SRS) to minimise sound levels
- Advanced humidity reduction vs standard cycling air conditioners
- Easy to operate slimline design master wall controller
- 7-day programmable controller with 24-hour timer
- In built temperature sensor
- Home automation compatible for ON/OFF control of your air conditioning system
- Easy to "see in the dark" display for room and set temperature
- Filter reminder
- 100% Genuine ActronAir® controllers. No 3rd party controls are used
- Optional secondary Master controller is ideal for 2 storey or large homes
- Optional secondary temperature sensor available
- Minimum Energy Performance Standards (MEPS) Compliant
- The ActronAir® Technical Support team is available to assist you with any enquiries
- 5 year Warranty*. For full warranty terms, click here >
- Backed up by the ActronAir® National Service Network to provide you with quick and reliable service when you need it
*Results may vary due to type of house, orientation, family lifestyle usage & location of house.
| MODEL | OUTDOOR | INDOOR | |
| ITEMS | SRD151C | SRV151E | |
| Power Supply | 230V / 1Ph + N / 50Hz | 230V / 1Ph + N / 50Hz | |
| Operation data | Cooling | Heating | |
| Nominal capacity | kW | 14.37[1.44(Min.)-14.37(Max.)] | 15.00 [2.85(Min.)-15.00 (Max.)] |
| Input Power | kW | 4.29 | 4.49 |
| EER Rated | 3.35 | - | |
| COP Rated | - | 3.34 | |
| Dimensions H x W x D | mm | 990 x 1320 x 580 | 412 x 1290 x 615 |
| Net weight | Kg | 136 | 61 |
